Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam Prices

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam Prices

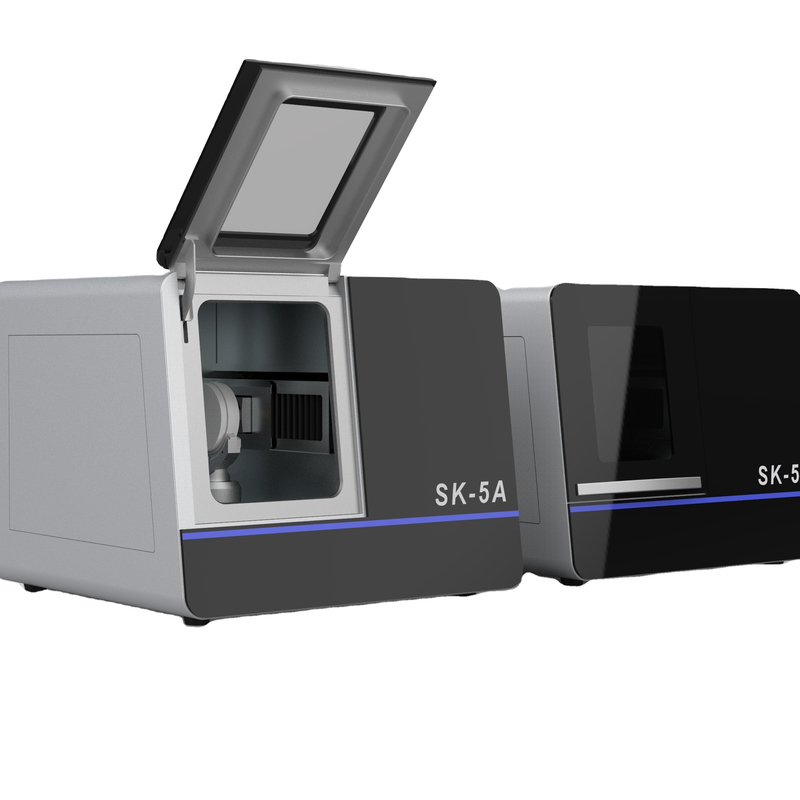

5 Axis Dental Milling Machine

Prices 5 Axis Dental Milling Machine

Lieu d'origine:

Shenzhen

Nom de marque:

YUCERA

Numéro de modèle:

SK-5A

Nous contacter
Demandez un devis
Détails du produit
Source d'énergie:
Électricité
Garantie:
1 an
Service après-vente:
Assistance technique en ligne
Matériel:
Métal, acier
Durée de conservation:
2 ans
Certification de qualité:
CE
Classification des instruments:
Classe I
Norme de sécurité:
DOMF
Taper:
5 axes machine de fraisage dentaire
Poids:
Machine de découpe : 95 KG Moteur principal : 20KG
Angle de fonctionnement de l'axe de rotation:
A : 360° B : ± 30° Usinage CNC
Puissance totale:
Fraiseuse 800W
Coupure de coupe:
fraiseuse dentaire 5 axes de 0,2 mm
Capacité du magazine à outils:
5 fraiseuses-outils
Mettre en évidence:

5 Axis Dental Milling Machine

,

Prices 5 Axis Dental Milling Machine

Conditions de paiement et d'expédition
Quantité de commande min
1 morceau
Prix
$10,000-14,000 / piece
Description du produit
Product Description



dental laboratory equipment and 5 axis dental milling machine up3d p52 dental milling machine cad cam  prices

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 0

Characteristics for 5 axes dental milling machine :

After 2 years of design and development, more than 100 dental labs tested, our Separation of mechanical and electrical control design to get unanimous praise:

1. Horizontal processing speed can be increased by nearly 20%

2. simplifying maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;

3. Tool detection sensor with 2um

4.24hours online technical support
5.include hyperdent(free)

Detailed specification of 5 axis dental milling machine:
Axis  5 Axis
Cut Method  dry milling
Milling Materials zirconia block, pmma, wax, PEEK
Size of milling materials φ98, thickness(10-30mm)
 Range of rotation & tling rotation  x/y/z: 105 / 135/ 90  A:360° B:±30°
 Speed of Principal axis  0-60000rpm / 500w
 Driver  Full rotation servo motor drive
cutters 5 tools; φ4mm
size of dental 5aixs milling machine CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm
G.W: of dental 5aixs milling machine CNC machine:95kg; Host milling machine:20kg
Compressed Air: 4.5-7.5bar;50ml/min
Min Capacity-Dry: 3000L/min
Power requirement : 800W;220-230v AC,56/60 hz



Packaging & Shipping



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 2Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 4Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 6

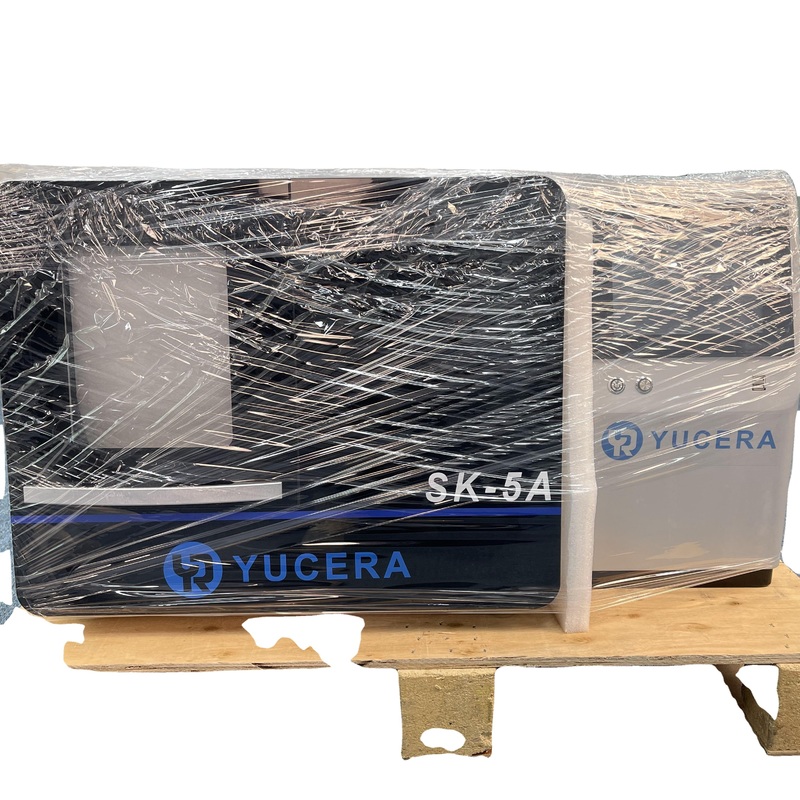

Blocks packed with carton box and polyfoam inside. Outside one more big box and waterproof membrane.

We will send out the product after 15 days from we receive the formal contract and front money.



Customer Feedback



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 8

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 10

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 12Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 14

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 16

Company Information



Located in Shenzhen's special economic zone, Shenzhen Yurucheng Dental Material Co., LTD is a comprehensive enterprise specializing in developing, manufacturing, and marketing Dental equipment and materials.

Yurucheng Cherish principles of technology innovation and people-oriented, concentrating

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 18Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 20Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 22

Exhibition



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 24



FAQ

1, Type of payment: T/T, West Union, Paypal, L/C, etc (transfer fee charge to the buyer)Others PolicySample Policy: We can offer samples for free.



2, Discount Policy: We supply discounts for bulk orders.



3, OEM Policy: We can accept OEM orders.
